Mobile Camera Module Test Toolkit

Optical SFP

EV-MIPI4L-PD-O



Features



Host interface
  - Optical interface version: PCI express gen2 4-lane Optical interface

Camera interface
  - MIPI 4-lane, parallel 16bit camera, I2C, SPI interface 제공

Power supply and measurement
  - Power 8 channel programmable, 채널당 1A 가능
  - Each channel voltage, Dynamic current, Standby current 측정 가능
  - Cut off current 지정

DC test 기능 & Open Short 시험, Leakage current 측정 가능

Software
  - 기본 Capture & PMU(Power & DC Test) SDK 제공,
    Windows 7 64, 32bit device driver 제공
  - 영상검사 SDK 별도(옵션) 제공







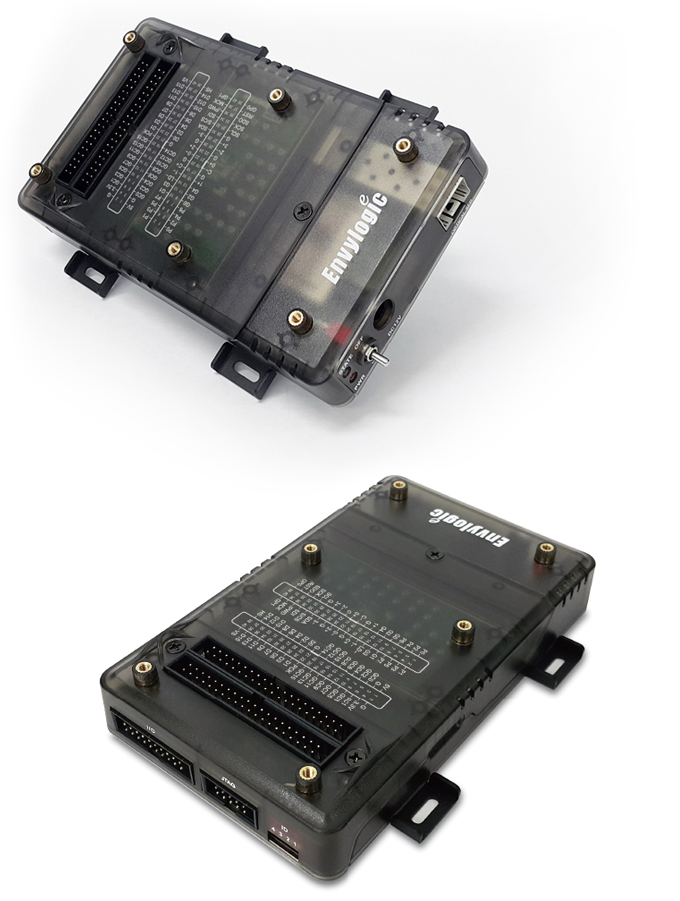

Model Overview













   Host interface
   PCI express gen2 4-lane Optical Interface

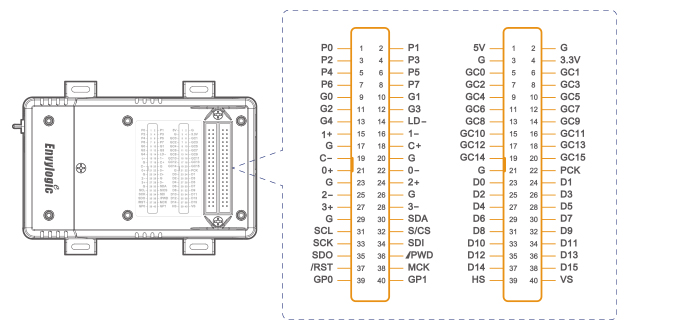

Pin Map








Mobile Camera Module Test Toolkit

Optical SFP

EV-MIPI4L-PD-O



Specification





 자료 준비 중입니다. (The information coming soon)




















Mobile Camera Module Test Toolkit

Optical SFP

EV-MIPI4L-PD-O

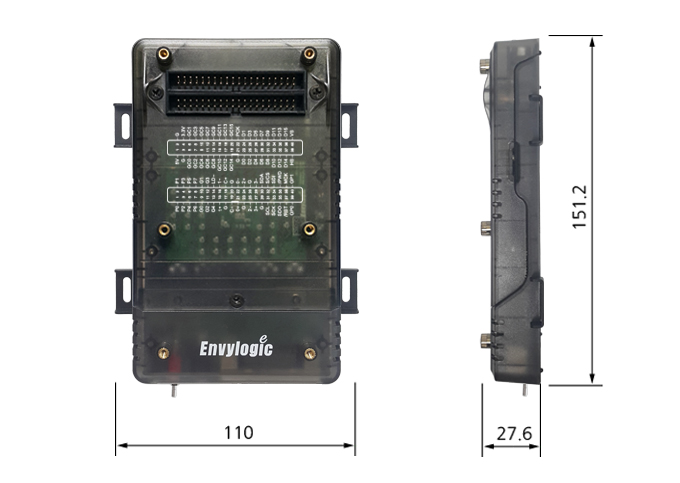

Dimensions

Unit: mm









Mobile Camera Module Test Toolkit

Optical SFP

EV-MIPI4L-PD-O











Accessories






                   Main Unit

                36pin ST Data cable 2M (Optional)
